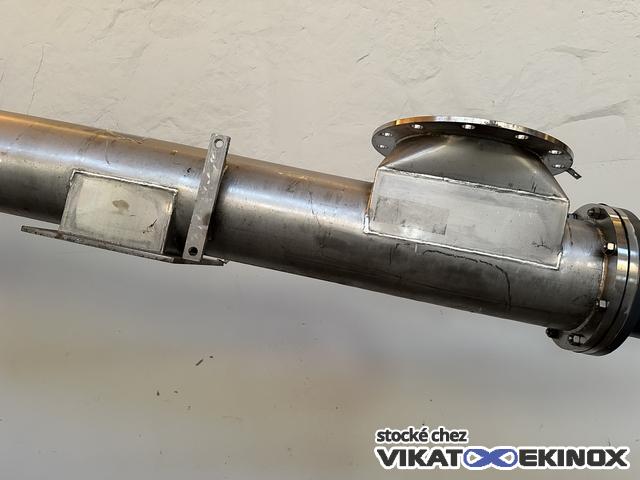

Tubular screw conveyor Length 3200 mm
Ref. : ISC 001
Stock : 1
Tube Ø ext. 255 x Length 3200 mm

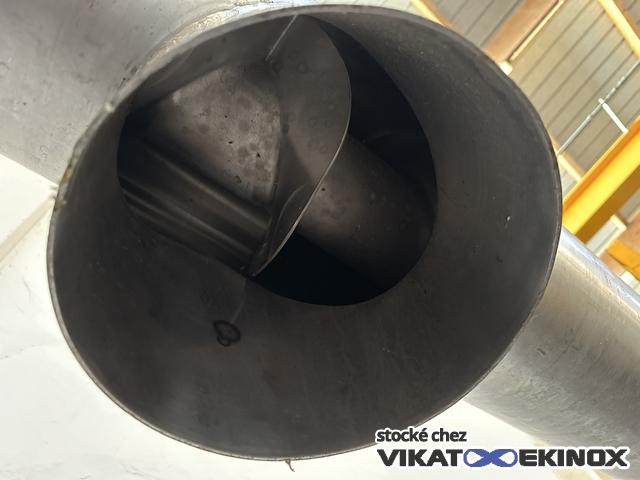

Stainless steel screw Ø 230 mm
Shaft Ø 110 mm

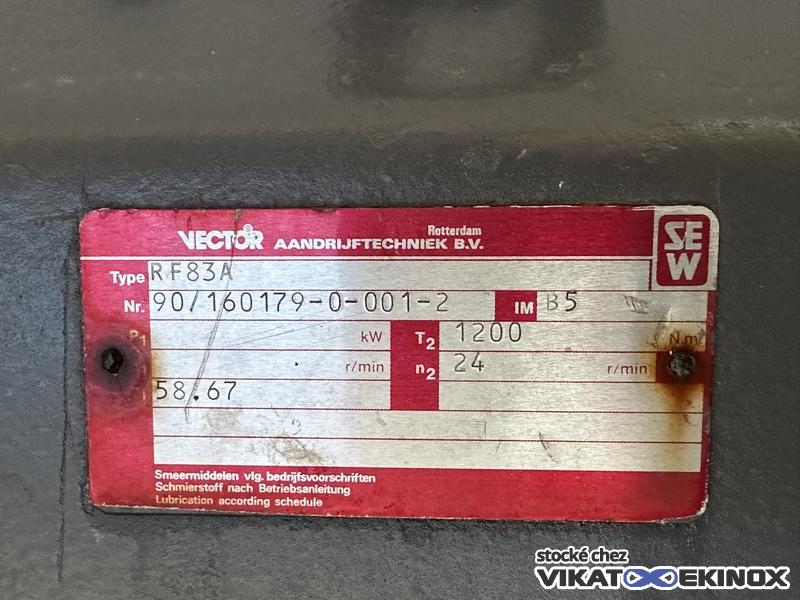

Geared-motor unit 2,5 kw 24 rpm 380 V

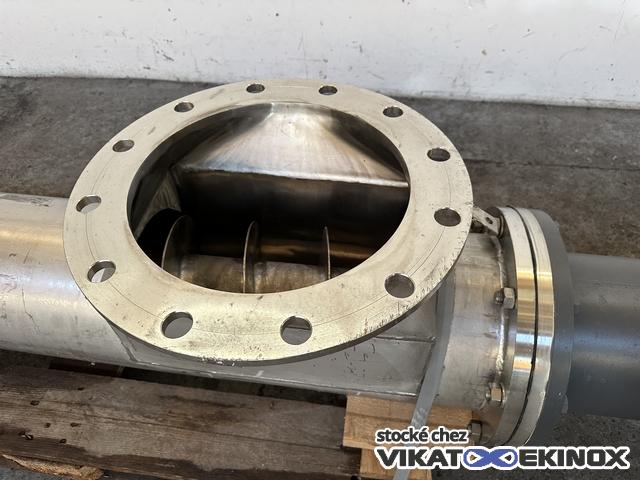

1 hole Ø 320 mm on motor side
1 hole Ø 250 mm on the opposite side of motor
1 intermediate hole 240 x 240 mm
Overall dimensions : 4200 x 500 x 450 mm
Stock : 1
Tube Ø ext. 255 x Length 3200 mm
Stainless steel screw Ø 230 mm
Shaft Ø 110 mm
Geared-motor unit 2,5 kw 24 rpm 380 V
1 hole Ø 320 mm on motor side
1 hole Ø 250 mm on the opposite side of motor
1 intermediate hole 240 x 240 mm
Overall dimensions : 4200 x 500 x 450 mm
Qty : | Ask a quote |
