TIM TRANSITUBE transfert and dosing hopper 350 litres with screw
Ref. : THO 057
Brand : Transitube
Stock : 2
Feeding via pneumatic transfer
with screen and anti-bridging
Product inlet and suction Ø 57 mm

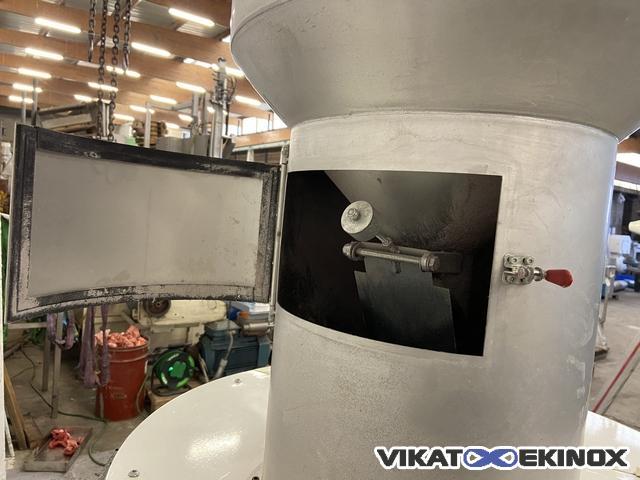

Flapdoor with counterweight
Steel tank inside Ø 900 mm
Height of shell 550 mm Height of conical bottom 400 mm
Outlet Ø 150 mm
Tubular screw Ø 110 mm
Inlet/outlet centres Ø 150 mm = 1040 mm
Round spiral Ø 10 mm
Motor 0.75 kW 700 rpm 400 V
Overall dimensions : 1750 x 900 x Ht 2750 mm
Brand : Transitube
Stock : 2
Feeding via pneumatic transfer
with screen and anti-bridging
Product inlet and suction Ø 57 mm
Flapdoor with counterweight
Steel tank inside Ø 900 mm
Height of shell 550 mm Height of conical bottom 400 mm
Outlet Ø 150 mm
Tubular screw Ø 110 mm
Inlet/outlet centres Ø 150 mm = 1040 mm
Round spiral Ø 10 mm
Motor 0.75 kW 700 rpm 400 V
Overall dimensions : 1750 x 900 x Ht 2750 mm
Qty : | Ask a quote |
