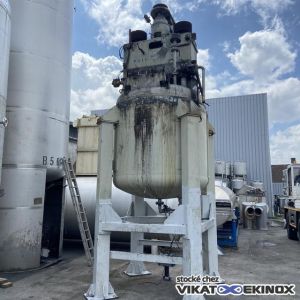

MTI MISCHTECHNIK S/S vacuum mixer with 3 agitators – 6500 litres total – type MD-Z4- 6500/ADD
Ref. : PPB 034
Stock : 1
Stainless steel 1.4541 – 321
Useful capacity : 5000 litres approx.
Tank Ø 2000 mm x inside height 2410 mm
Double jacket on shell and bottom
Outlet Ø150 mm
3 agitators :
* 1 central low speed shaft 30KW – 8,5 rpm approx. - scraper anchor type
* 2 high speed shafts – 2 Motors 132KW – 2 x 3 disperser discs
Upper inlet dim. 600 x 500 mm with cover
Dimensions : 6500 x 2500 x 3000 mm approx.
Tare weight : 9500 kg (without the 2 motors 132KW dismantled for delivery)
Technical file on request
Stock : 1
Stainless steel 1.4541 – 321
Useful capacity : 5000 litres approx.
Tank Ø 2000 mm x inside height 2410 mm
Double jacket on shell and bottom
Outlet Ø150 mm
3 agitators :
* 1 central low speed shaft 30KW – 8,5 rpm approx. - scraper anchor type
* 2 high speed shafts – 2 Motors 132KW – 2 x 3 disperser discs
Upper inlet dim. 600 x 500 mm with cover
Dimensions : 6500 x 2500 x 3000 mm approx.
Tare weight : 9500 kg (without the 2 motors 132KW dismantled for delivery)
Technical file on request
Qty : | Ask a quote |
