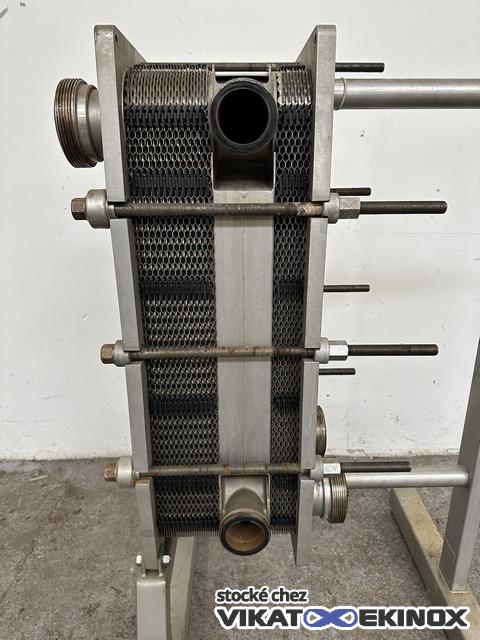

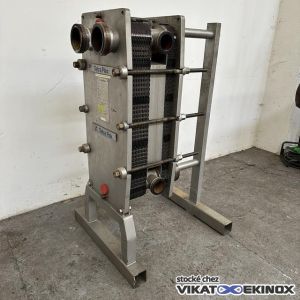

ALFA LAVAL TETRA PAK heat exchanger type MS10-SBL
Ref. : SAP 006
Brand : ALFA LAVAL
Stock : 1
2 stainless steel head plates dim. 960 x 445 mm
1 stainless steel intermediate plate - 4 holes
27 + 11 plates
4 holes Ø 100 mm
4 holes Ø 72 mm
Length between frame 705 mm
Volume : 28 litres
Working pressure : 8,6 bars
Overall dimensions : 900 x 700 x H. 1325 mm
Brand : ALFA LAVAL
Stock : 1
2 stainless steel head plates dim. 960 x 445 mm
1 stainless steel intermediate plate - 4 holes
27 + 11 plates
4 holes Ø 100 mm
4 holes Ø 72 mm
Length between frame 705 mm
Volume : 28 litres
Working pressure : 8,6 bars
Overall dimensions : 900 x 700 x H. 1325 mm
Qty : | Ask a quote |
