Ref. : LUC 009

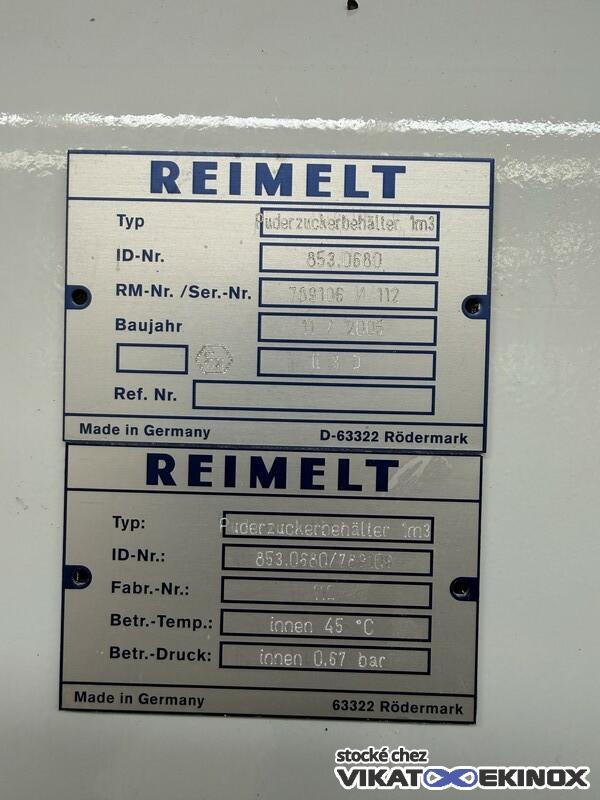

Brand : REIMELT
Stock : 1

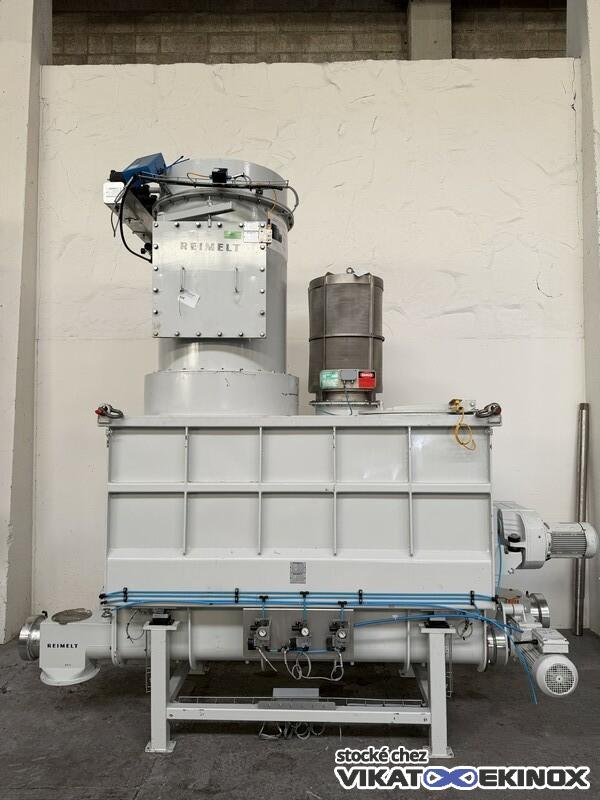

Steel tank — L 2000 x W 1000 x H 1200 mm — On load cells

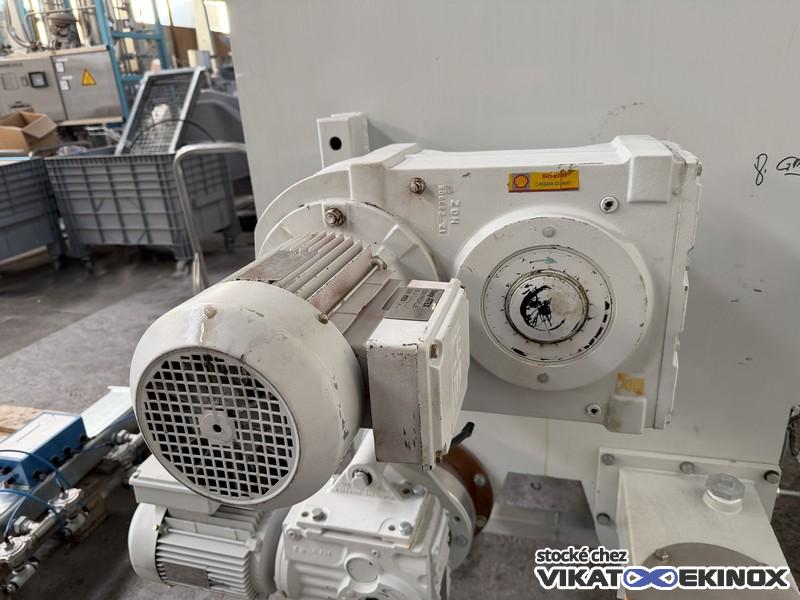

Paddle agitator — Geared motor 2.2kW 11rpm

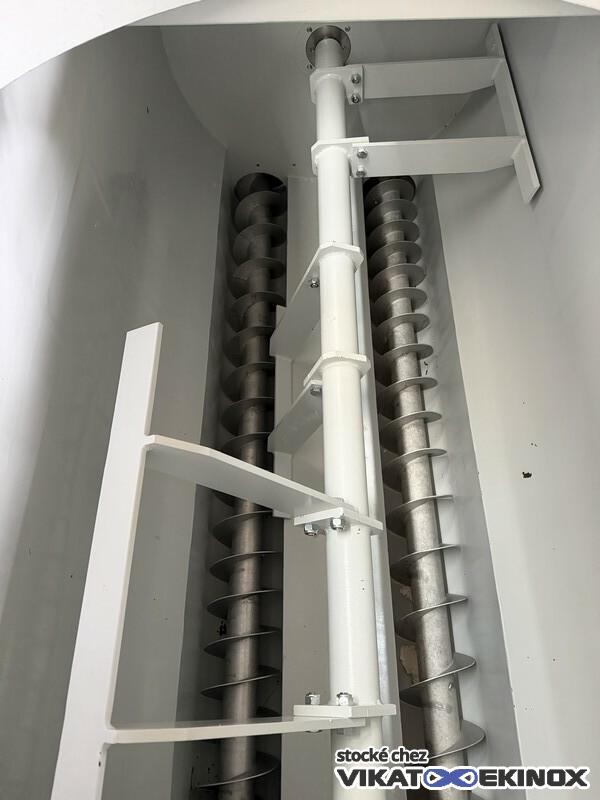

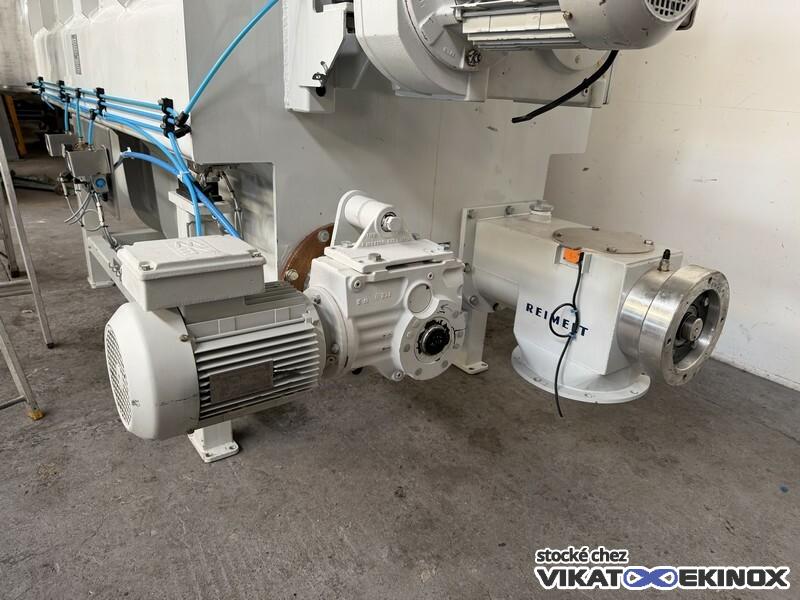

Discharge by 2 St. steel screw conveyors Ø200mm — 2 geared motors 2.2kW 40rpm
2 outlets Ø250mm — Option: Rotary valves ref. LUC 006 & LUC 005

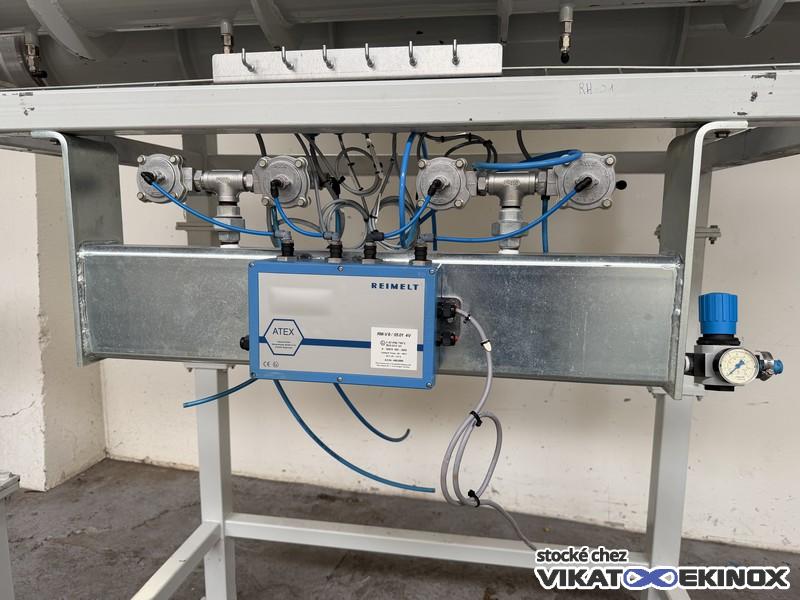

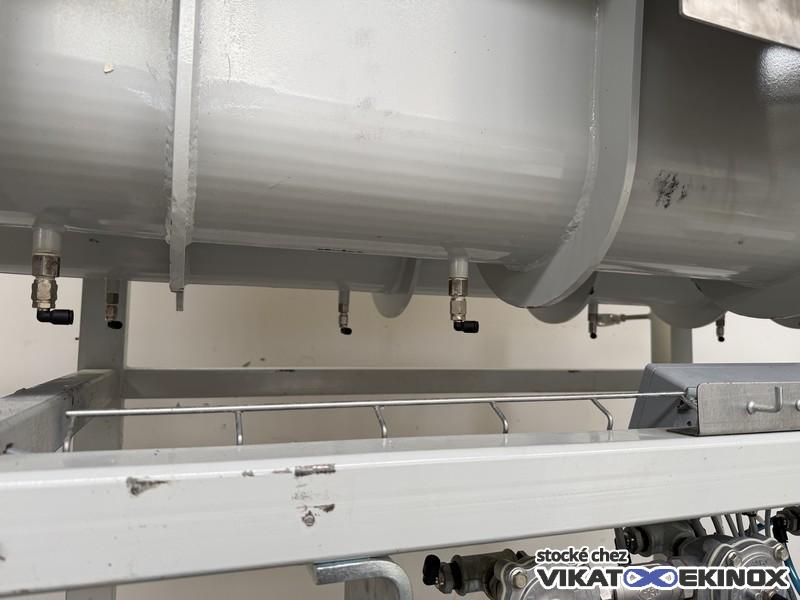

Screws equipped with 2 x 4 air injection nozzles

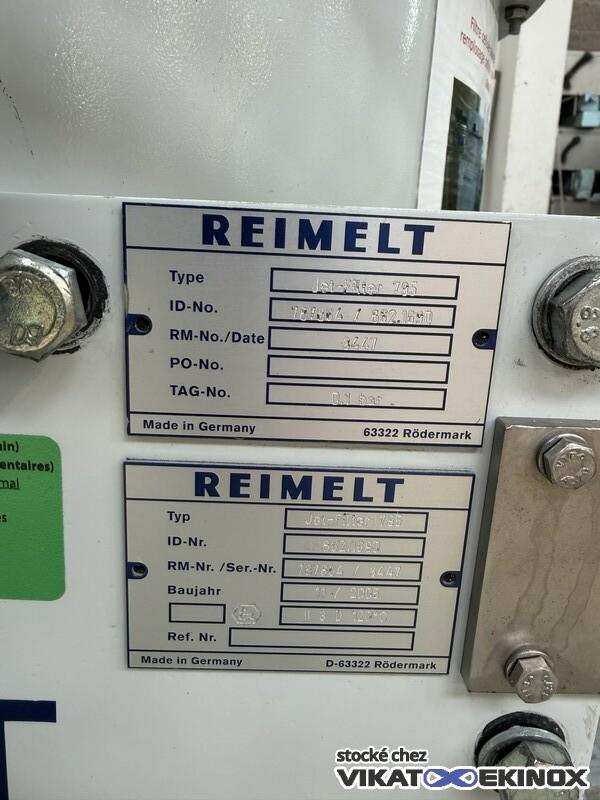

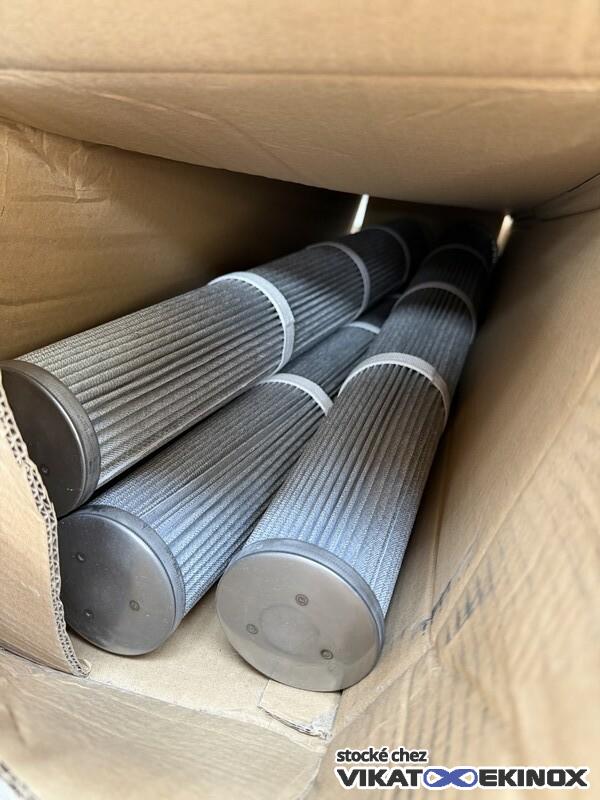

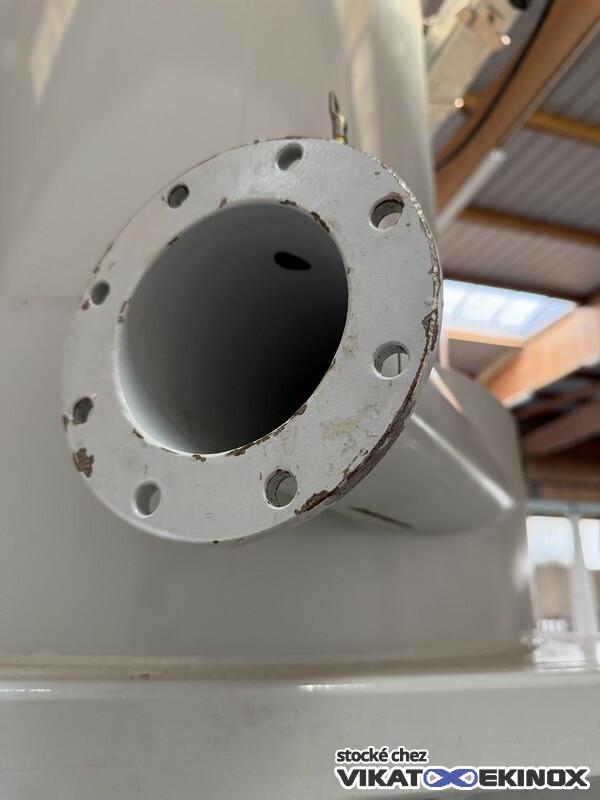

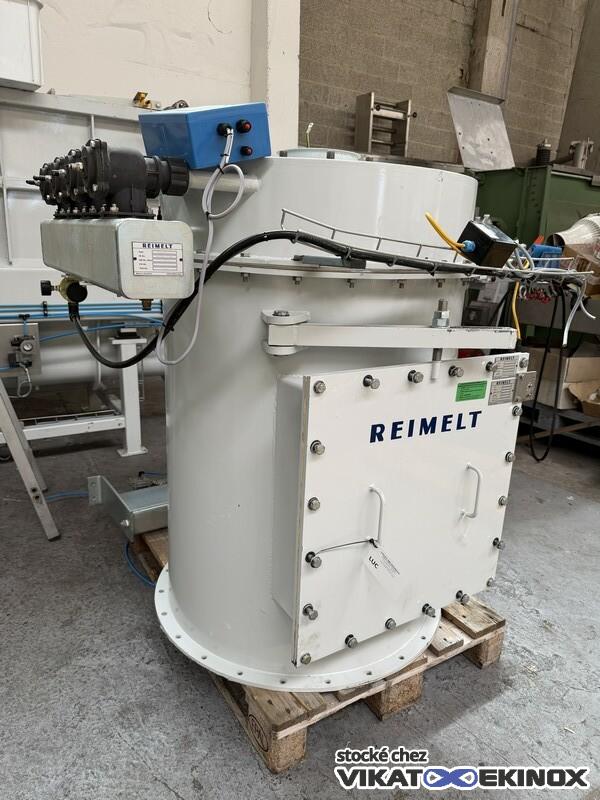

14-cartridge filter REIMELT type JET-FILTER 795 with product inlet Ø110mm
Pneumatic pulse-jet cleaning system

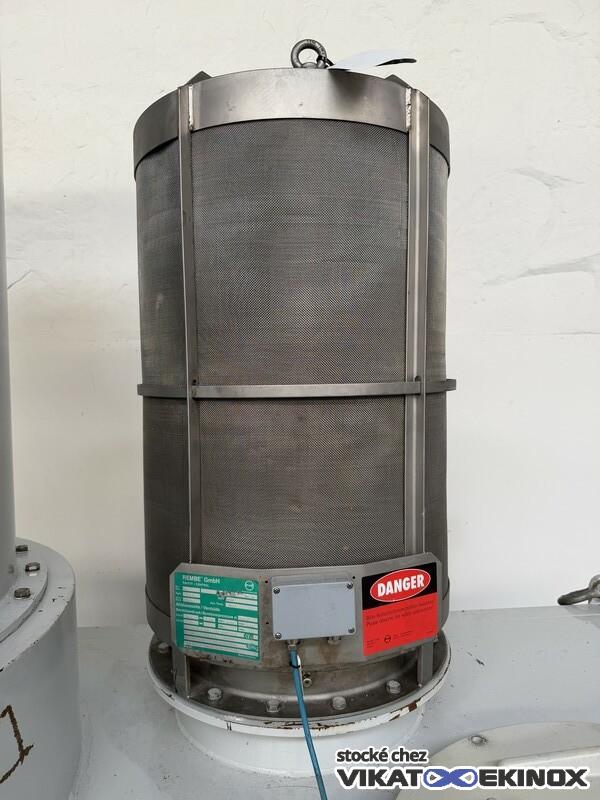

1 explosion vent
1 manhole Ø500mm

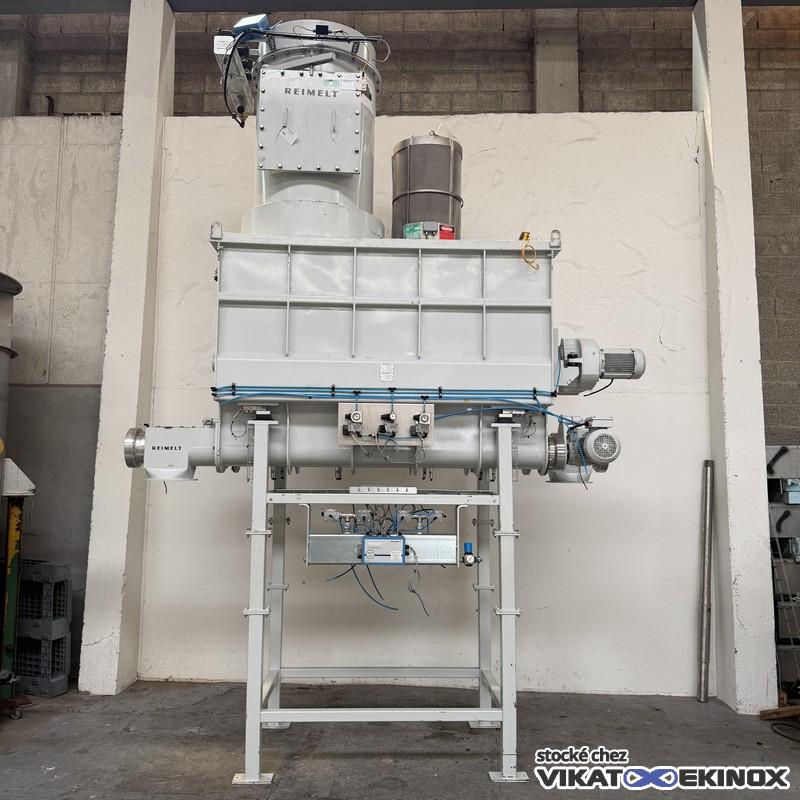

Frame with 930 and 445 mm height extensions
Manufacturer's documentation file
Overall dimensions: 3200 x 1400 x H. 4700 mm
