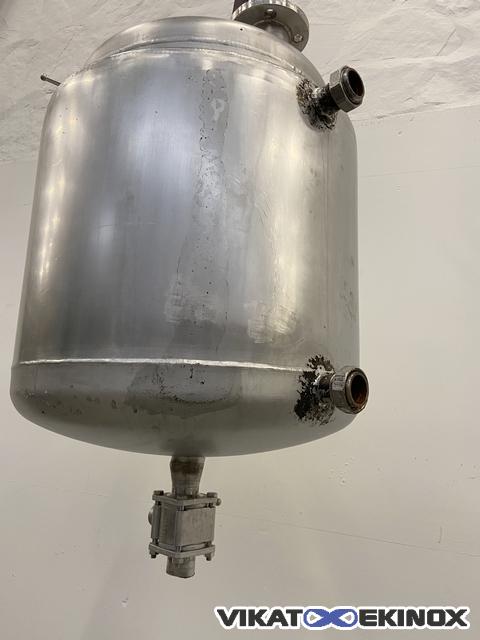

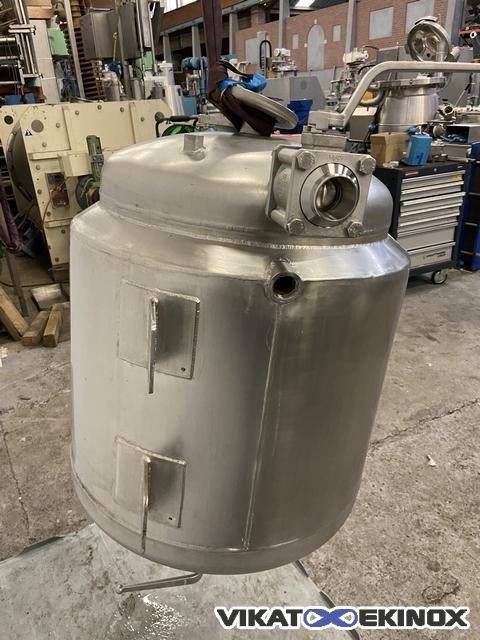

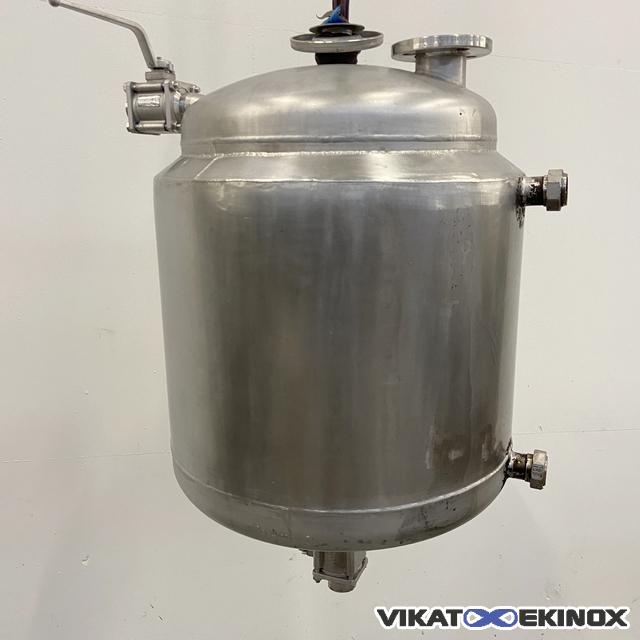

S/S tank 125 litres double jacket
Ref. : FIG 005
Stock : 1
Tank Ø 500 mm
Inside height 720 mm
Height of shell 500 mm
2 dished botttoms
Stainless steel double jacket on shell and bottom

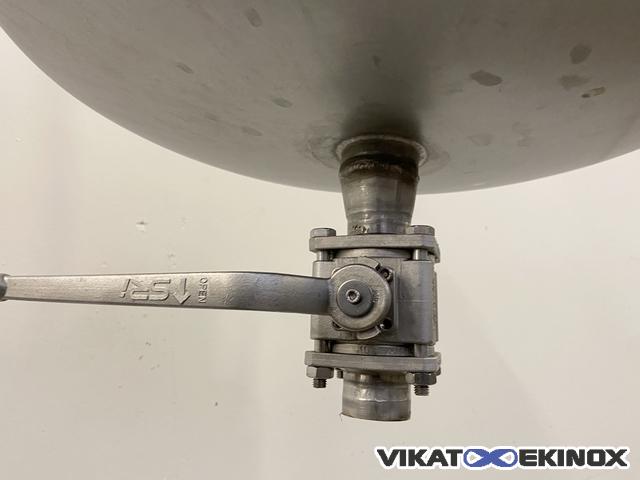

Outlet with valve 1.5 inch (3.8 mm)

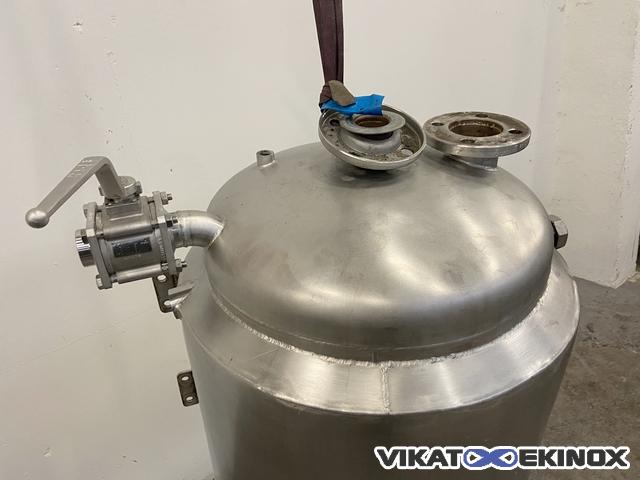

On top :
Central nozzle Ø 45mm, nozzle Ø 72mm, nozzle Ø 18mm, nozzle 1.5 pouce
Overall dimensions : 800 x 600 x Ht 1000 mm
Stock : 1
Tank Ø 500 mm
Inside height 720 mm
Height of shell 500 mm
2 dished botttoms
Stainless steel double jacket on shell and bottom
Outlet with valve 1.5 inch (3.8 mm)
On top :
Central nozzle Ø 45mm, nozzle Ø 72mm, nozzle Ø 18mm, nozzle 1.5 pouce
Overall dimensions : 800 x 600 x Ht 1000 mm
Caractéristiques :
- Agitée : Non
- Position : Verticale
- Quality : Inox
- Réchauffage : Oui
- Volume : < 499 L
Qty : | Ask a quote |
