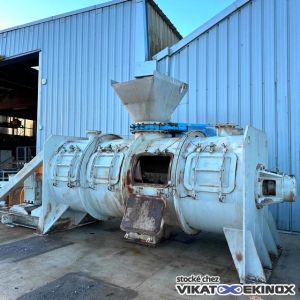

GRELBEX MS8000 ploughshare mixer 8000 L – steel – 4 choppers
Ref. : EPD 001
Brand : GRELBEX
Stock : 1
Tank Ø 1600-Length 4000 mm Total vol : 8000L
Max. capacity : 5600 litres approx.
Central shaft with ploughshares
Centrifuge coupling

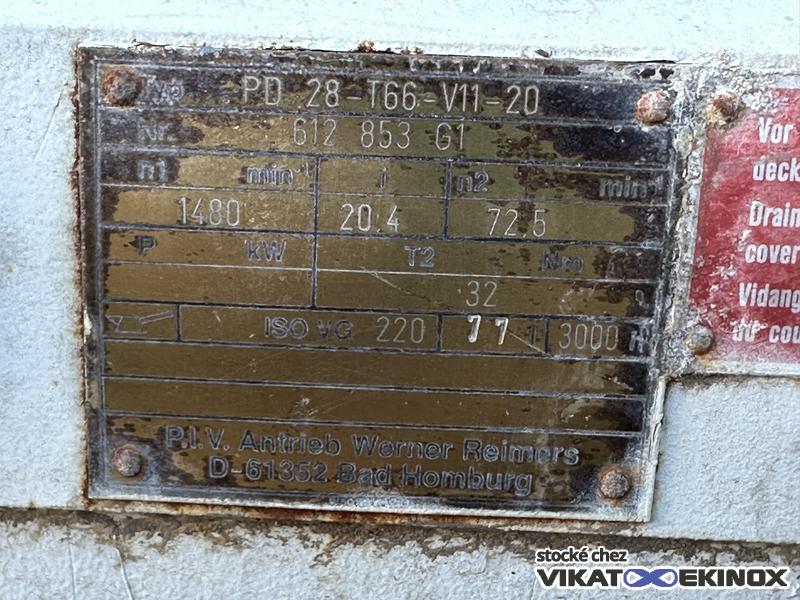

Motor 132 kw - PIV reducer 72,5 rpm
3 upper inlets - 1 x DN600 with valve
4 doors -1 central discharge door with jack
4 rotary blade choppers with motor 7,5 kw 3000 rpm
Overall dimensions : 7650 x 2750 including valve x H. 3150 mm including hopper
Weight : 14800 kg (including valve and hopper)
Brand : GRELBEX
Stock : 1
Tank Ø 1600-Length 4000 mm Total vol : 8000L
Max. capacity : 5600 litres approx.
Central shaft with ploughshares
Centrifuge coupling
Motor 132 kw - PIV reducer 72,5 rpm
3 upper inlets - 1 x DN600 with valve
4 doors -1 central discharge door with jack
4 rotary blade choppers with motor 7,5 kw 3000 rpm
Overall dimensions : 7650 x 2750 including valve x H. 3150 mm including hopper
Weight : 14800 kg (including valve and hopper)
Technical documentation :
